| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | N PACK |
| Orzecznictwo: | CE |
| Numer modelu: | NP-VF |

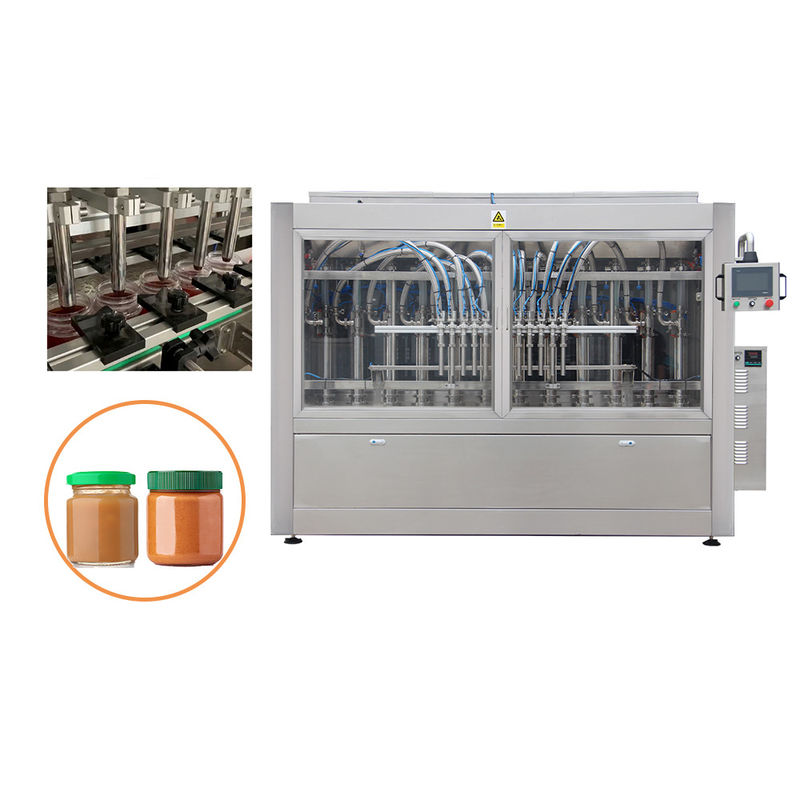

The sesame butter filling machine is a linear filling solution that can be integrated with capping and labeling machines to form a complete production line. It features PLC control and a user-friendly touchscreen interface, ensuring easy operation and stable performance. Built with food-grade 304 stainless steel, it meets strict hygiene standards and offers long-lasting durability.
Designed for high-precision filling of viscous products such as sesame butter, sauces, and pastes, the machine uses an efficient piston pump system to achieve accurate and consistent filling. It supports a wide filling range from 50ml to 5000ml, making it suitable for various production requirements.
Compliant with CE standards, the Sesame Butter Filling Machine ensures safety, reliability, and high efficiency, helping manufacturers improve productivity while maintaining consistent product quality.
Main Features
1.Anti-Drip Filling Nozzle
Equipped with an automatic anti-drip system to prevent material leakage, reduce waste, and maintain clean production.
2.Hygienic Operation
Includes a liquid collection tray to capture residual sesame butter, keeping the machine and working area clean.
3.Easy Cleaning & Maintenance
Designed for quick disassembly, making cleaning simple and compliant with food-grade hygiene standards.
4.Flexible Bottle Compatibility
Adjustable structure fits various bottle sizes without changing parts, reducing downtime and improving efficiency.
5.High Automation Level
Available in semi-automatic or fully automatic configurations, helping increase production efficiency and lower labor costs.
Product Parameters
| Model | NP-VF | ||||||
| Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 |
| Capacity Based on 500ml |
12-14BPM | 24-28BPM | 36-42BPM | 48-56BPM | 60-70BPM | 70-80BPM | 80-100BPM |
| Range | 100-500ml,100-1000ml,1000-5000ml | ||||||
| Air pressure | 0.6MPa | ||||||
| Accuracy | ±0.1-0.3% | ||||||
| Power | 220VAC/ SINGLE PHASE /1500W | 220VAC/ SINGLE PHASE/ 3000W | |||||
The Sesame Butter Filling Machine consists of a filling nozzle, conveyor system, touchscreen control panel, and electrical control cabinet, designed for precise and efficient filling of viscous products like sesame paste.
1.Automatic Start-Up
After powering on, the machine runs automatically, activating the piston pump for suction and filling operations.
2.Material Suction
The pneumatic piston pump draws sesame butter from the storage tank into a metering cylinder for accurate dosing.
3.Bottle Positioning
Once the set volume is reached, the filling nozzle automatically positions above the bottle for accurate alignment.
4.Filling Process
The nozzle opens to dispense a precise amount of sesame butter into each bottle through the filling system.
5.Adjustable Filling Volume
Users can easily adjust pump parameters to control the filling quantity with high accuracy.
6.Anti-Drip Design
The nozzle closes automatically after filling to prevent dripping and ensure clean, hygienic operation.
After-Sales Service
1. Installation
Our technicians provide on-site installation services, covering setup and all related arrangements.
2. Training
We offer professional training for operators and engineers, available both on-site and at our factory.
3. Warranty
The filling machine includes a one-year warranty with dependable maintenance support, spare parts supply, and prompt troubleshooting.
4. Consultation Service
Free consultation is available to recommend suitable solutions, including customized layouts and CAD design support.
5. Technical Support
24/7 technical assistance via email or phone ensures fast response and smooth production.
6. Spare Parts
A standard spare parts kit is included, with additional high-quality components available at any time.
