| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | N PACK |
| Orzecznictwo: | CE ISO SGS |
| Numer modelu: | NP-RL |

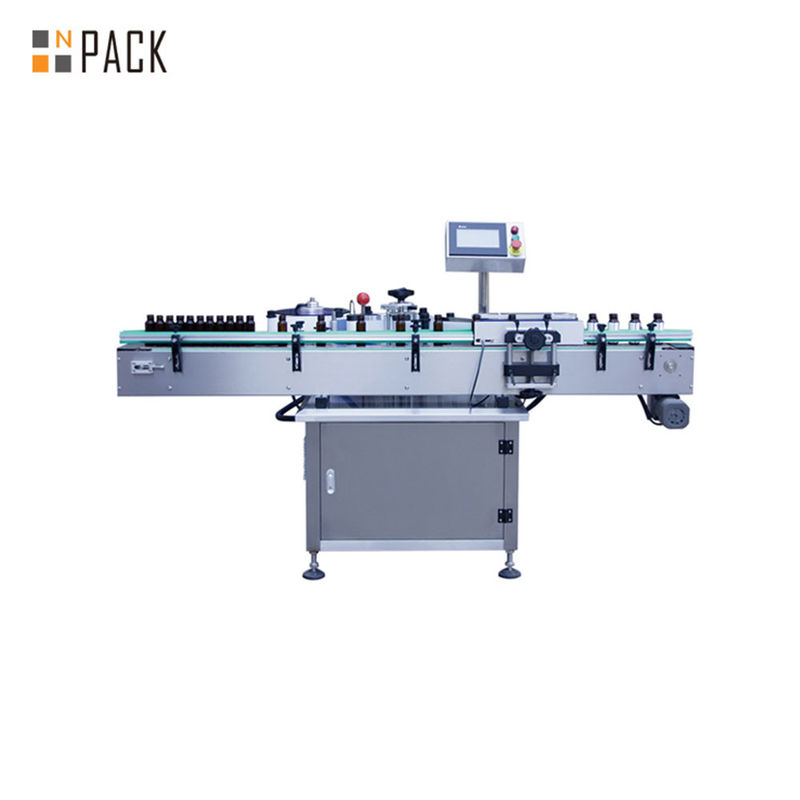

Main Feature
1.High level of automation with simple operation, reducing manual labor and improving production efficiency.
2.Labeling speed reaches 40–150 jars per minute, suitable for medium and high-volume production lines.
3.Compatible with plastic, glass, and metal cosmetic jars, supporting full-wrap and half-wrap labeling.
4.Optional coding and inkjet printing functions are available for printing batch numbers, production dates, and other information.
5.Built with a 304 stainless steel frame and high-quality international electrical components for stable and reliable performance.
6.Intelligent PLC control system with color touchscreen, featuring no jar no labeling, automatic detection, and parameter memory functions.
| Model / technical parameters | NP-RL |
| Labeling speed (pcs/min) | 40-150(relate to material and label size) |
| Labeling accuracy(mm) | ±1.0mm (material and label sizes are not counted in) |
| Label size(mm) | (L)20-280mm (H)30-144mm |
| Material size (mm) | Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) | φ76mm |
| Roll outer diameter(mm) | Max:Φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1450(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W |
Product Details
1.Bottle Feeding Table: Provides gentle, adjustable feeding for bottles of various sizes, minimizing the risk of damage as bottles enter the labeling area.
2.Bottle Separation Wheel: Ensures bottles are evenly spaced and properly aligned as they progress along the conveyor, optimizing label placement.
3.Adjustable Rails: Securely guide bottles through the labeling process, easily adapting to different diameters and shapes to maintain consistent positioning.
4.Label Stand: Holds and dispenses the label roll smoothly, preventing interruptions or tangles during operation.
5.Pressing Wheels: Firmly affix labels onto bottles, eliminating air bubbles and wrinkles for a clean, professional finish.
6.Conveyor System: Transports bottles efficiently through each stage of labeling, with adjustable speed settings to match production requirements.
7.Control Board: User-friendly interface allows precise adjustment of labeling parameters such as speed, label size, and bottle type.
8.Electrical Box: Safely houses electrical components, contributing to both the machine’s mobility and ease of maintenance.
Types of Round Bottle Labeling Machines
When it comes to round bottle labeling, there’s a solution for every production scale and need:
Ideal for small-scale operations or startups on a budget, manual machines offer a simple, hands-on approach. They can handle bottles of various shapes and sizes, though they operate at a slower pace and require more effort from the user.
A step up in efficiency, semi-automatic machines blend manual operation with mechanized labeling. The operator positions each bottle, and the machine handles the label application—striking a balance between speed and control.
For large-scale production lines, fully automatic machines take the lead. Operators simply load bottles, set parameters, and let the system handle the rest—delivering precise, uniform labeling at high speeds with minimal intervention.
Specialized for applying labels to just one side of a cylindrical bottle, these machines excel at wrap-around labeling for various bottle sizes and configurations.
Each machine type is designed to accommodate different levels of production, bottle shapes, and labeling requirements, making it easy to find the right fit for your operation.
Utilizing photoelectric detection, PLC control, and software operation, the conveyor belt ensures precise and accurate labeling. To achieve this, the bottle is first positioned correctly on the conveyor, guaranteeing consistent label placement on every container. Advanced label sensors—typically photoelectric—detect the exact position and edge of each label as it moves through the machine. The labeling head is then precisely adjusted to align the label perfectly with the bottle’s surface. Additionally, real-time feedback control systems continually monitor the labeling process, automatically correcting any misalignments to maintain high accuracy and uniformity throughout production.
